VST — Your vision, we design
High-vacuum technology, thin-film deposition, vacuum ovens, altitude test chambers, and arc-melting systems. Built since 1982 for research labs, satellite agencies, and industrial manufacturers who need a system, not a catalog item.
Custom Vacuum Engineering Since 1982
We obtained excellent process results on all layers. The equipment runs daily, with no failure.
Most engagements start as one of three problems. Whichever it is, the same team scopes, designs, builds, and supports the system through its operating life. Specifications, components, and integration are all decided with you, not pulled from a catalog.
Sputtering, evaporation, and ion-assisted systems for metals, dielectrics, and organic materials. Single-chamber to multi-chamber cluster tools with load-locks and inert glovebox integration.
Vacuum ovens, arc-melting systems, and process chambers built around your samples and your protocol. Designed for daily lab use and engineered for the long haul.
Altitude test chambers and space simulators used by satellite developers and aerospace research labs. Plus authorized integration of ATEQ leak testers and J.A. Woollam ellipsometers.
An integrated tool with separate chambers for RF/DC sputtering with load-lock and ion-assisted e-beam evaporation with substrate flip. Designed compact, built robust, simple enough for a daily research workflow. Live and running.
These are the workloads our customers come to us for. Each card lists the product lines that go into that application, so you can jump straight to the equipment from here, or read the full catalogue below.
Compact, robust, easy-to-operate systems for thin-film research groups. Designed for graduate students to run, engineered to last through generations of them. Daily-use installations at CNRS Montpellier, HUJI, Technion, Weizmann, BGU, Bar-Ilan, and Tel Aviv University.
Altitude test chambers, thermal-vacuum simulators, and aerospace-grade degassing systems. The same engineering team behind ISRO's compact sputter + e-beam at the U R Rao Satellite Centre delivers to IAI, Rafael, Elbit, and ELTA Systems.
Built for the moisture- and oxygen-sensitive chemistries lithium and sodium-ion research demands. Glovebox-integrated electrode prep, dedicated TCH-500/550D ovens for solvent removal (NMP), arc-melting for refractory current-collector materials.
Sputtering for hard, optical, and barrier coatings at pilot and production scale. Alongside our own systems, VST distributes advanced analytical instrumentation — ATEQ leak testers, J.A. Woollam ellipsometers, and Prevac HV/UHV systems — for process control and metrology.
The ELMUL EVAP-10X electron beam deposition system — a 6 kW, four-pocket e-beam evaporator with planetary substrate rotation, cryo-pumped below 2×10⁻⁷ Torr and run with Telemark quartz process control. Built for R&D and low-scale production of precision optical coatings, with the reliability and traceability defense-sector work demands.
Dedicated Josephson Junction multi-chamber systems with 0.01° tilt accuracy and controlled in-situ oxidation. Delivered to the Bar-Ilan University Nano Center for superconductive-circuit production. Supports superconducting qubits, NV centers in diamond, spin qubits, and topological architectures.
The TCH-495 medical altitude chamber is IEC 60601-1 compliant for medical equipment qualification. ATEQ leak testers cover sterile medical packaging integrity. Customers include Medtronic and GE Healthcare DCD.
Every VST customer starts somewhere. We engineer the same precision into a compact R&D tool and a multi-chamber production cluster — so you can scale your process without changing your software, your recipes, or your team.
Focused R&D. Maximum process flexibility. Lowest cleanroom footprint.
TFDS-462 · TFDS-842 · AM-133Combine sputter + evaporation under continuous vacuum.
TFDS-460 · TFDS-840 · TFDS-870 in gloveboxEliminate the cleanroom: full PVD + ALD in an inert environment.
Khalifa Univ · chained-glovebox labsFully automated multi-process production with centralised SCADA.
TFDS-4600 · TFDS-4500 · TFDS-5000/5500Standard configurations for common needs and full custom builds when the standard doesn't fit. Every system is engineered, integrated, and supported by the same team that delivered our first thin-film deposition system in 1982. Tags below each card show the industries that line serves.
TCH-340 / TCH-340T / TCH-400 / TCH-500/550D / TCH-700 / TCH-864 Yael. Up to 400 °C, 5×10⁻⁷ Torr. Outgassing, baking, lithium-battery solvent removal (NMP), JEDEC J-STD-033B moisture-sensitive devices. ISO 7 cleanroom-compatible.
TCH-447 TVAC (aerospace, sea-level to space, <4×10⁻⁸ Torr, 1-year continuous tests). TCH-499 mid-altitude (to 70,000 ft). TCH-495 medical altitude (IEC 60601-1). Used by ISRO, IAI, Rafael, Elbit since 1982.
HVF-1000 / 1004 / 1006 at 1200 °C or 950 °C, 2×10⁻⁷ Torr. Multi-zone PID, programmable gas flow per step. For annealing, sintering, diffusion bonding, and quantum-grade post-processing.
GB-200 / 300 / 400 standalone (2 / 3 / 4 gloves), GB-450 integrated with vacuum ovens, TFDS-870 integrated with PVD. Sub-ppm O₂/H₂O. Chained-glovebox labs — Khalifa University Abu Dhabi runs an 8-box lab.
TFDS-462/460 versatile single-chamber, TFDS-840/842 compact, TFDS-847 PLD, TFDS-4600 multi-chamber cluster, TFDS-4500 dedicated Josephson Junction (0.01° tilt), TFDS-5000/5500 cluster tools. DC / RF / Pulsed-DC / HiPIMS. Up to 8″ wafer.
EVAP-4X / 6X / 8X for 4″ / 6″ / 8″ wafers. Telemark E-beam source + 861 controller. 6 kW, 0–10 kV. Up to 4 thermal sources for hybrid metal/dielectric stacks. Active substrate cooling for lift-off.
ALD-330 Multifunction (Thermal + Plasma), ALD-340 Multi-chamber Thermal, ALD-350 for Powders. 4″–8″ wafers, 350 °C, 2–6 precursors. NV-diamond surface oxides, MEMS, solar cells, display panels.
AM-133 compact, AM-133C with vacuum suction casting (rod casting up to 30 g+), AM-133H with secondary pumping to 10⁻⁴ Torr. Up to 3400 °C. Buttons, densification, refractory alloys, nuclear & fuel research.
Bridgman, Czochralski, and Solid-Solution Method. For infrared, oxide materials, and lithium-battery research. Fully automated all-in-one PC/PLC, cleanroom-design, compact-to-scalable.
End-to-end labs — concept to working solution. Khalifa University Abu Dhabi (8 gloveboxes + 4 PVD + 1 ALD + 1 vacuum oven + ellipsometer + plasma cleaner, 2023). Multi-system clusters with centralised SCADA.
LTS-100 Mini (small components) and LTS-200 Compact (medium devices). Built on the ATEQ F620 platform. 128 programs · IP67/IP68 · 0.1–5 bar · 1 Pa sensitivity · customised chambers per customer drawings.
Custom chambers, feedthroughs, valves, viewports, fittings. CF/KF/ISO standards. Manufactured to spec, shipped fast. For OEMs and labs building their own systems.
F620 · D620 · F28+ · F670LV · G620 · CDF7000 · TLC600 · WINATEQ 300 software. World #1 in leak testing since 1975 — 150,000+ testers installed across 5,000+ customers in 40+ countries. VST is Israeli distribution + integration partner.
Spectroscopic ellipsometry for film thickness, optical constants, and stack analysis. Industry-reference instruments. M-2000 series. Applications support included.
High and ultra-high vacuum systems for scientific and industrial use, from Prevac (Poland). Distributed by VST. Product catalog coming soon.

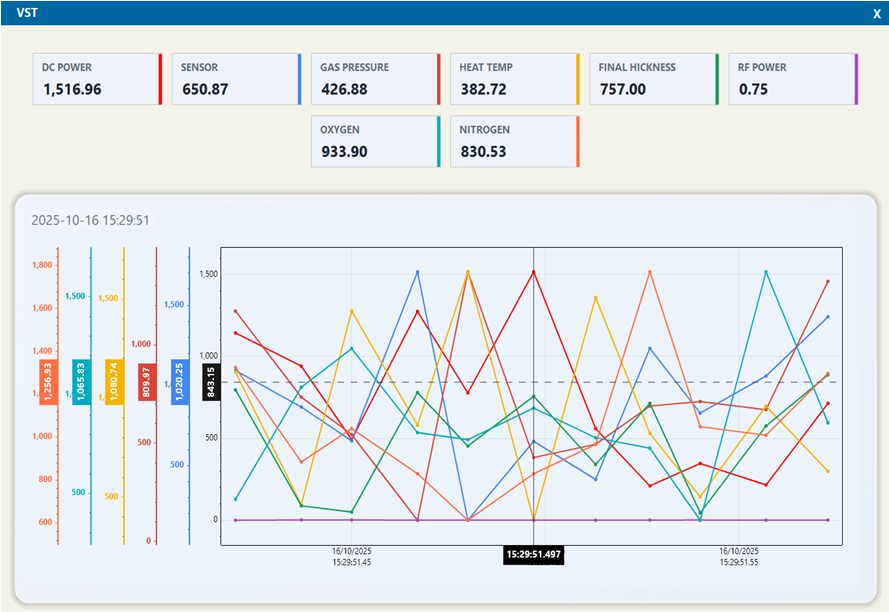

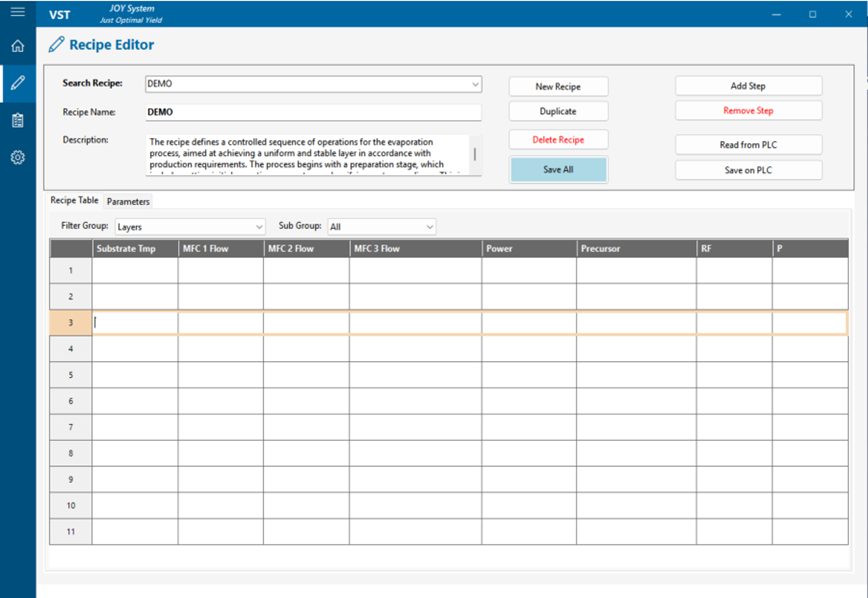

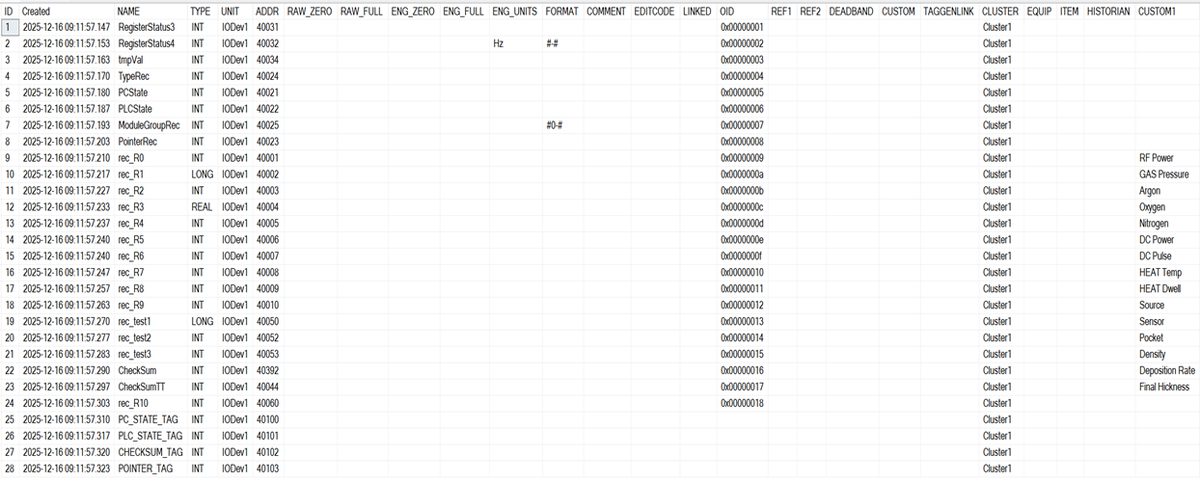

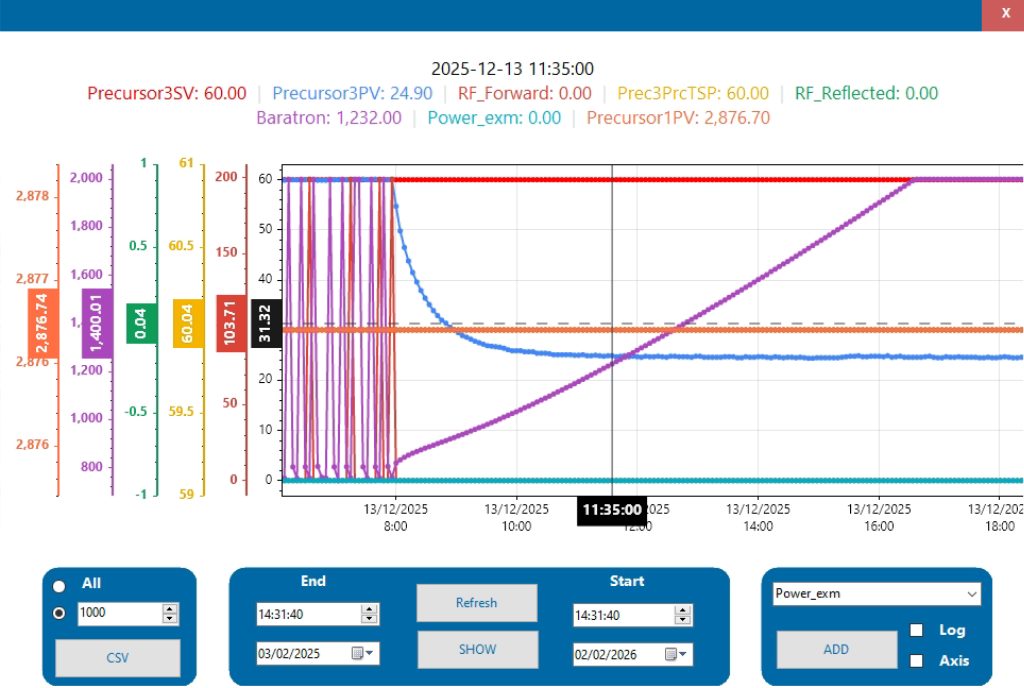

VST's in-house control and data platform — the recipe editor, live KPI dashboard, multi-year SQL Server historian, and tag-based architecture that runs on every TFDS, TCH, AM, ALD and Cluster system we deliver.
When the brief is broader than a single tool, VST scopes, builds, and integrates the lab itself. Chained gloveboxes, PVD and ALD systems, vacuum ovens, ellipsometry, plasma cleaning — integrated, commissioned, and run from a single control stack.

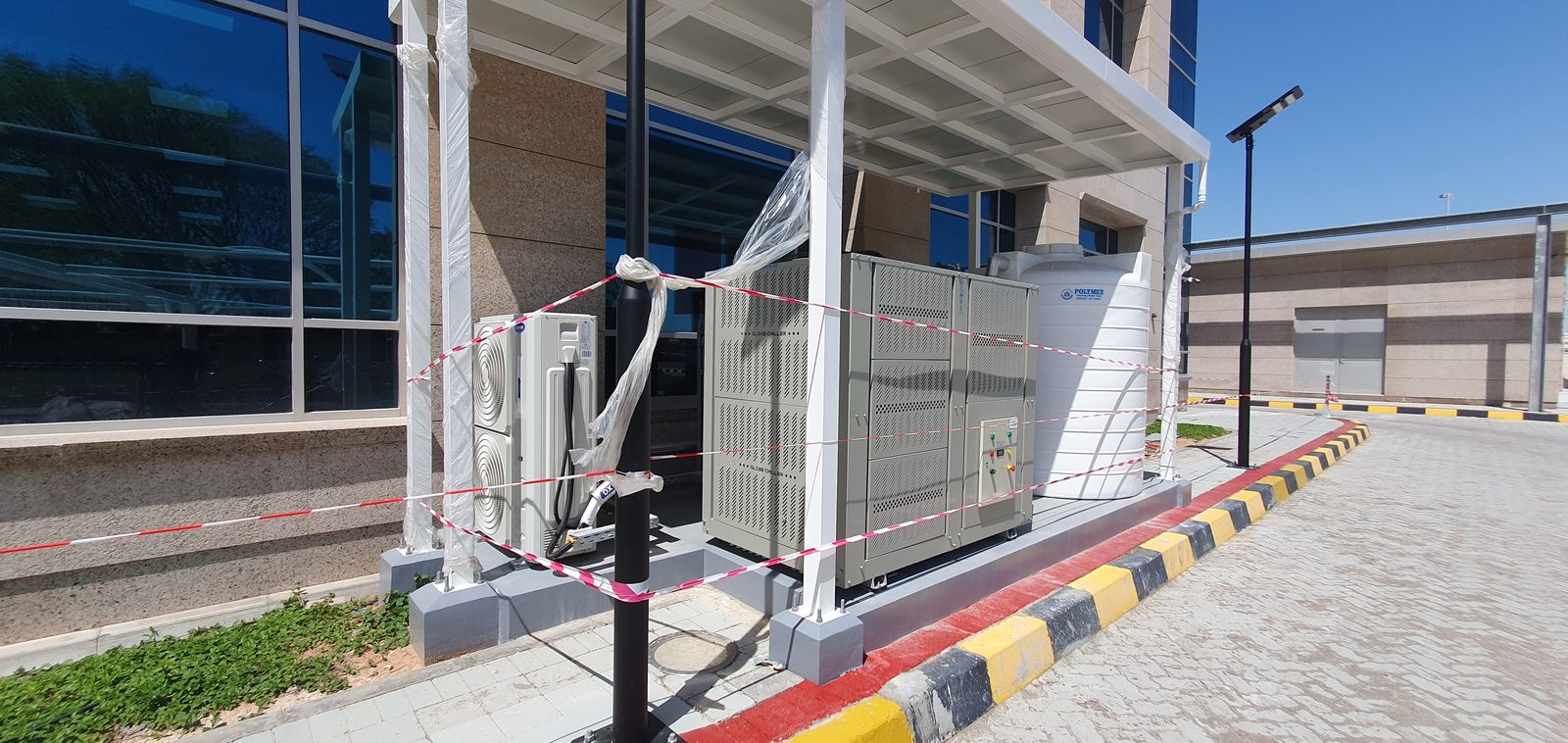

Khalifa University, Abu Dhabi — delivered across 2023–2024.
VST's product story is told best by the researchers who run the equipment every day. Selected quotes from recommendation letters on file — full letters available on request.
Buying from VST is an excellent choice — this company will provide you with a piece of great equipment for an attractive price.
Systems designed and supplied by VST have proved their value day-by-day through a continuous use with very low down-time.
Highly impressed by the proficiency, commitment, and creativity of VST's engineers.
Interactions with VST and its services have been prompt, positive, professional and extremely helpful.
Send a brief on your process, target specs, and timeline. We'll come back with a recommended configuration, ballpark, and references from comparable installations.
