AM-133

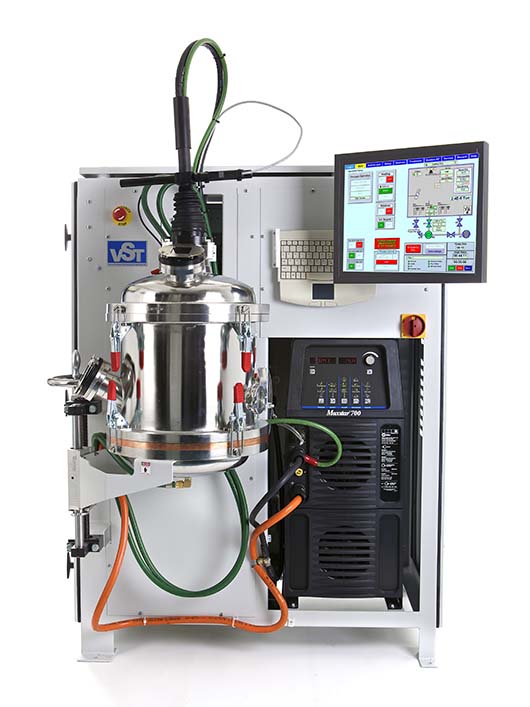

Vacuum Arc Melting Furnace AM-133
Turn-key Vacuum Arc Melting Furnace, model AM-133 is intended for following processes
- Metallic and Non-Metallic Buttons
- Material Densification and purification
- Powder Melting
- Arc Vacuum Casting
- Annealing
- Compound Synthesis
- Experimental alloys
- Thermal treatment
Benefits:
- Stainless steel water-cooled cylindrical type processing chamber
- Easy opened bottom hearth for fast loading/unloading
- Two viewports with removable shield
- Interior illumination
- Lifting mechanism for loading of 3D samples
- Water-cooled tungsten rod cathode and replaceable customized crucible
- Pressure automatic regulation in upstream mode
- Reactive and inert gas controlled atmosphere
- Inert gas controlled purge
- High Frequency Arc Starter as standard, no getter required
- Safety water switches
- PC/PLC control with fully automated processes
- Touch Screen Control panel
- Programmable power and pressure ramping
- Manual / Auto / Service control
- Three Login permission levels – Operator, Manager, Supervisor
- Historical data logger with graphical Online /Offline review
Max. Temperature | Over 3500°C |
Hearth | 42.4 cm O.D. water-cooled copper |
Stinger Tip | 12.7 mm Diameter Tungsten Rod |
Chamber | stainless steel, water-cooled |
Dimensions | 315 mm inside diameter, 308 mm Height |
Ultimate pressure | less than 1x10-2 Torr |
Range of arc current | 50 – 650 A |
Number of gases | 3 |
Max gas flow | 20 slm |
Optionally:
- Turbo or Diffusion High Vacuum Pump
- Customized Hearth
- Downstream pressure control mode
- Controlled partial pressure of inlet gases
